22 INCH DOUBLE ROW LIGHT BAR

XEN-D22 22" Dual Row LED Light Bar

In stock

A 22-inch dual row LED light bar for working rigs.

$242 AUD
  • 3-year warranty
  • 30-day money-back guarantee
  • Flat $10 shipping, free for logged-in VIP members
  • 40+ stockists nationwide. Find one near you
  • Australian owned and operated
  • Afterpay available

XEN-D22

About the XEN-D22

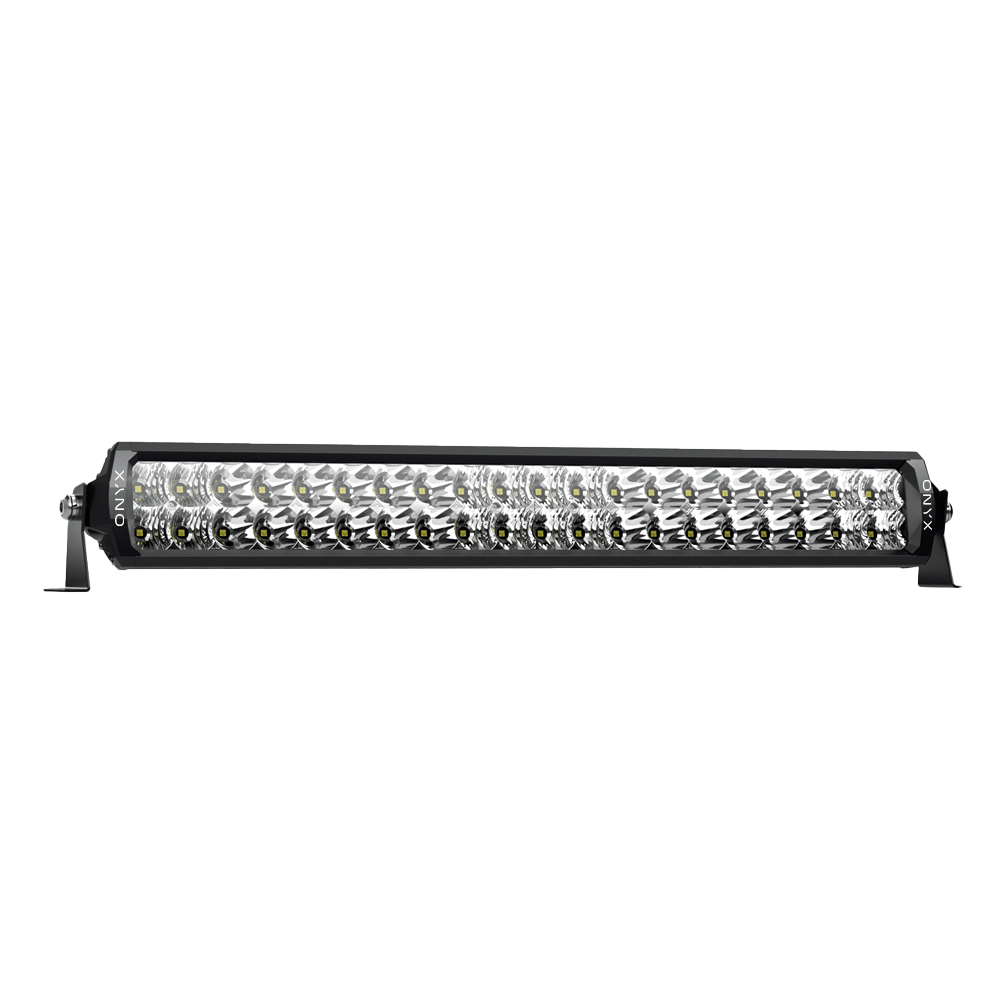

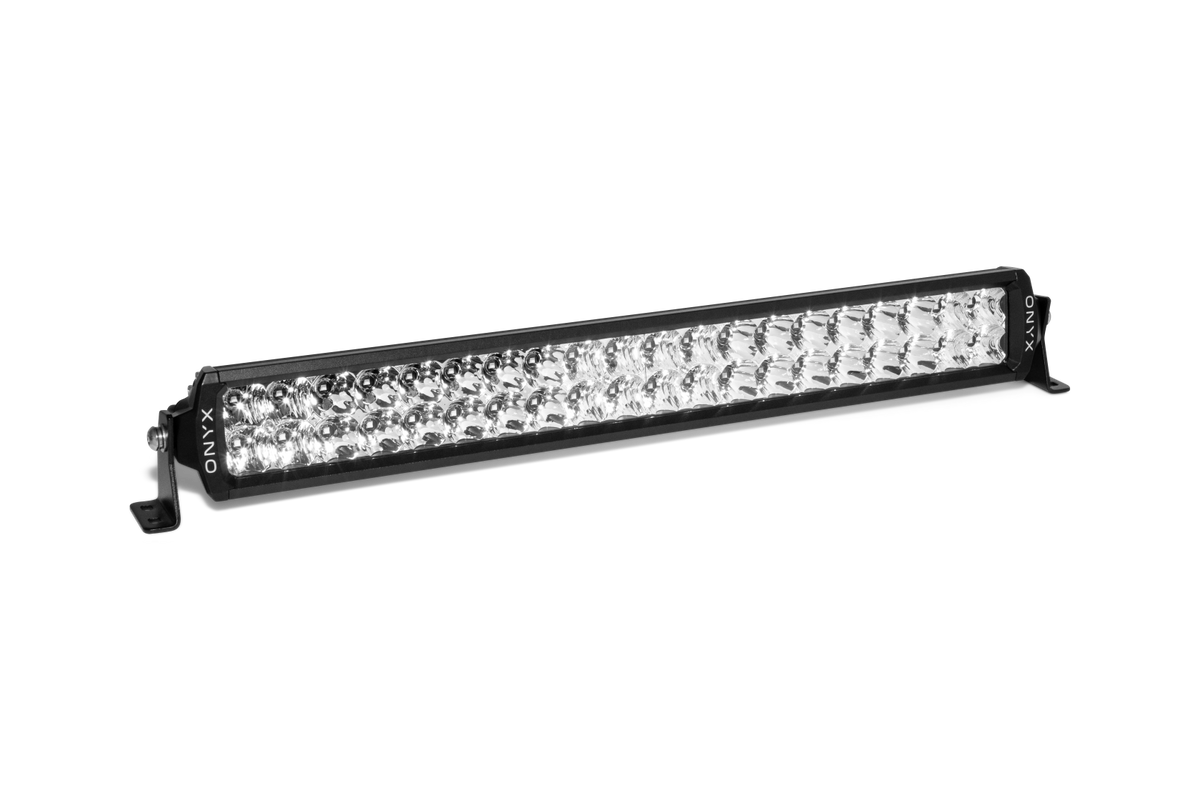

XEN-D22 22-inch dual row LED light bar

A 22-inch dual row LED light bar for working rigs. It puts light out in front of the rig, where the work is. Station tracks, worksites, long nights.

Hot days and cold nights draw moisture into a light. The XEN-D22 has a Gore-Tex breather valve that equalises the pressure and vents the moisture.

  • GE Lexan lens that resists yellowing
  • Screwless design
  • Gore-Tex breather valve that equalises pressure and vents moisture
  • Fast Fit wiring harness with H4 and HB3 adaptors

Proven out there. Born and tested in Far North-West Queensland.

3-year warranty, 30-day money-back guarantee, flat $10 shipping.

Not cheap. Not fancy. Every dollar goes into the light.

Key features

XEN-D22

Introducing the XEN-D22 (Double Row) Light Bar, designed for maximum performance and sleek modern design. With its screwless design, this Light Bar is perfect for any application, delivering optimal output pattern to light up any driving situation from tight tracks to long highways. With XEN, you no longer have to compromise on your choice of Light Bar based on the type of road you're driving on.

Featuring a GE Lexan lens, the strongest lens in the market, the XEN-D22 Light Bars are built to last, with incredible strength and no yellowing over time. The strong mounting bracket includes a rubber dampener to assist with vibration, ensuring a smooth and stable ride.

The XEN-D22 Light Bars are CISPR 25 Class 3 certified, ensuring zero radio/communication interference. The Gore-Tex breather valve allows for 100% pressure equalization and moisture venting, keeping the light bar in pristine condition.

With an IP69K waterproof rating, the XEN-D22 Light Bars are the highest rated for both dust and waterproofing. The 6500K Kelvin colour temperature is perfect for illuminating any driving situation.

The XEN-D22 Light Bars come with a Fast Fit Wiring Harness for easy, plug and play installation, including H4 and HB3 high beam adaptors. Custom light covers are also available for a personalized touch.

Upgrade your driving experience with the XEN-D22 (Double Row) Light Bar today!

In the box

What's included

  • 1Γ—ONYX Lights XEN-D22 Light Bar
  • 2Γ—Mounting Brackets
  • 1Γ—Plug and Play Wiring Harness
  • Stainless Steel Fastener
  • 3 Series Stainless Steel Nuts and Bolts

XEN-D22

Specifications

Product code
XEN-D22
Description
22 INCH DOUBLE ROW LIGHT BAR
LEDs
40 X OSRAM 5w
Effective lumens
19,040 LM
1 lux at
520 M
Beam pattern
SPOT, FLOOD BEAM
Colour temperature
6,500K
Daytime running lights
NO
Power
200W
Voltage
9-36V DC
Lens
GE LENS
IP rating
IP68 & IP69K
Wiring
WIRING HARNESS INCLUDED
Connections
INCLUDED
Life
50,000 + Hours
Warranty
3 YEARS

XEN-D22

Size and beam

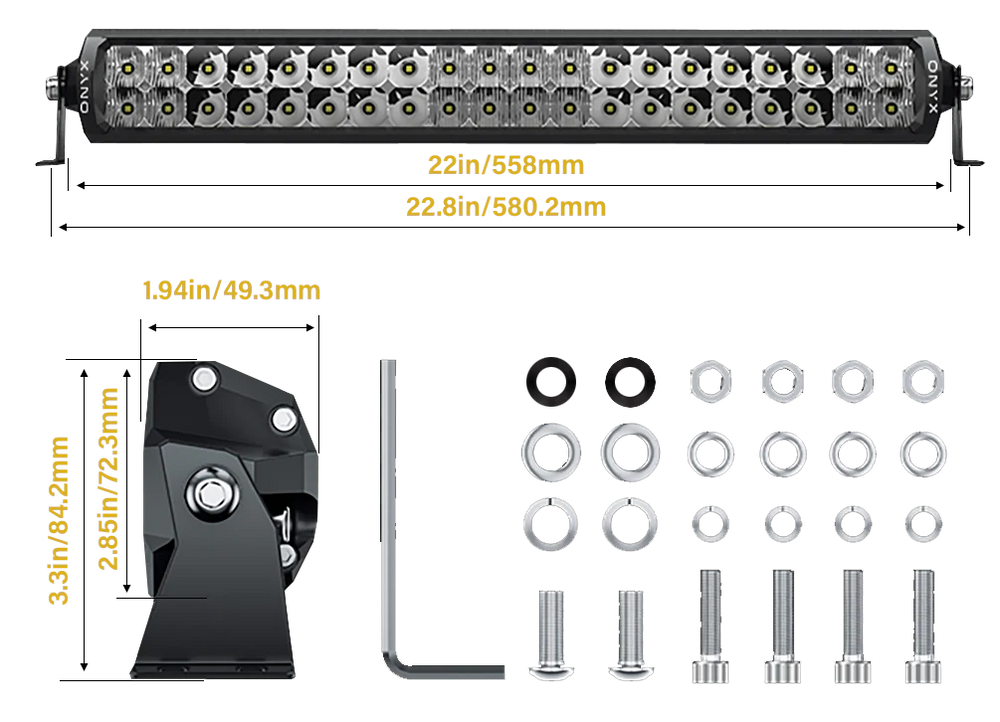

Dimensions
Dimensions
Lux graph
Lux graph
