9" round driving light

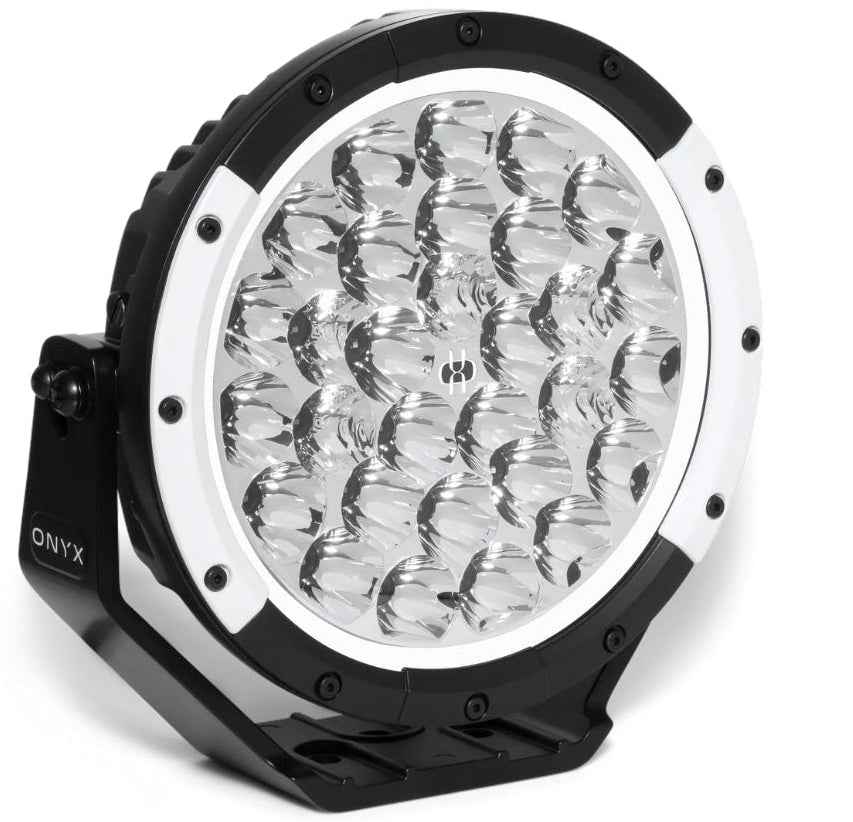

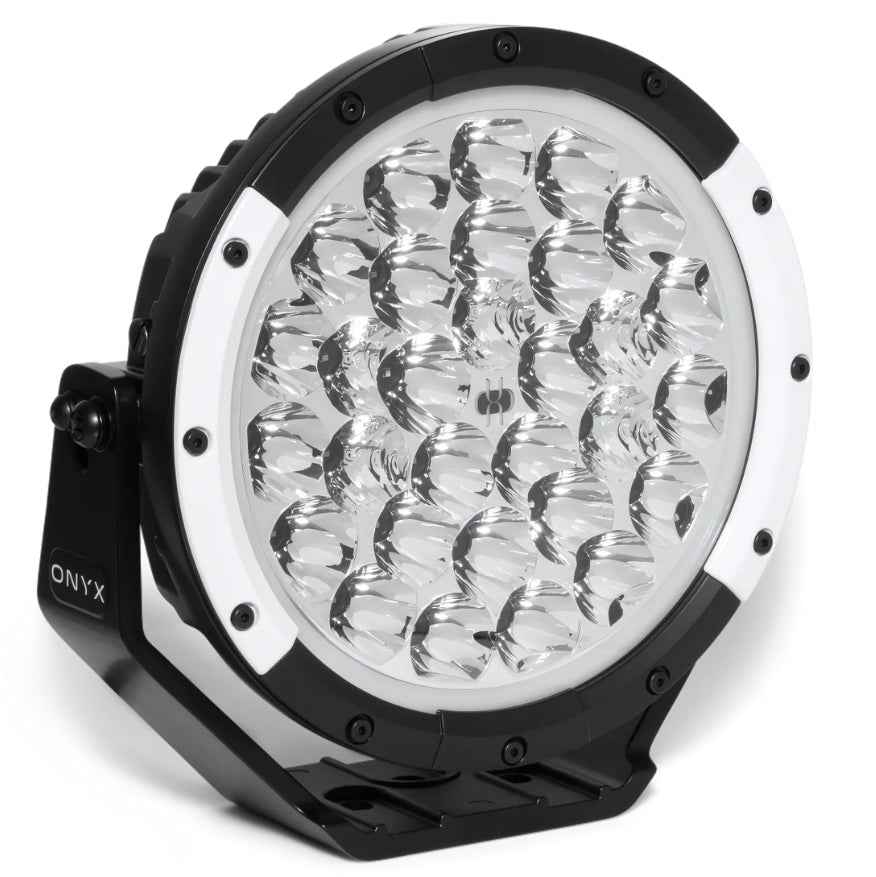

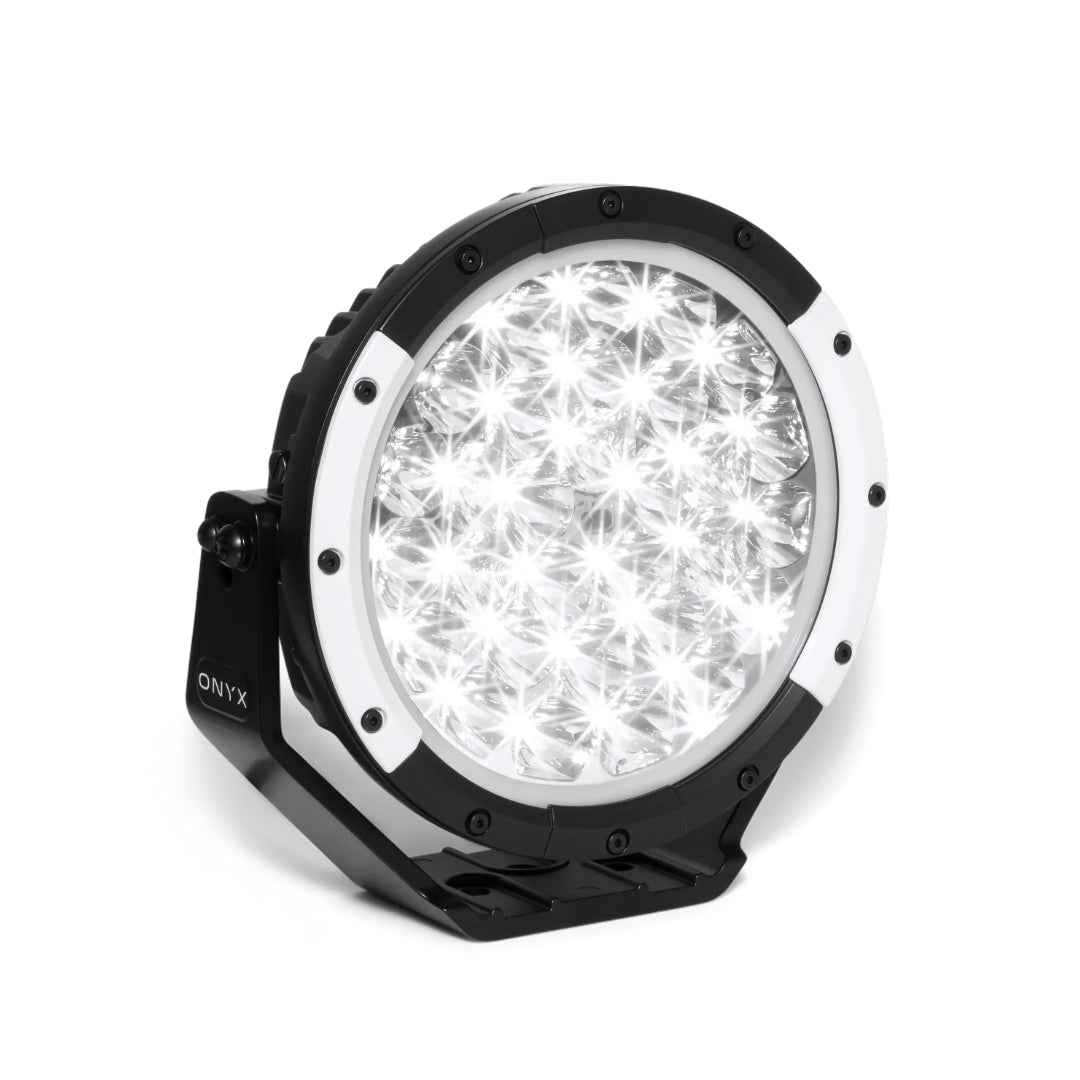

TB-9 9" LED Driving Lights with Wiring Harness
A 9-inch round driving light that puts light down the road and wide into the table drains, so you see the roo before it moves.
- Up to 5-year warranty
- 30-day money-back guarantee
- Flat $10 shipping, free for logged-in VIP members
- 40+ stockists nationwide. Find one near you
- Australian owned and operated
- Afterpay available
TB-9 · driving light
Still shining.
Proven on working rigs across the north-west.
A 9-inch round driving light that puts light down the road and wide into the table drains, so you see the roo before it moves. 1 lux at 1,820 m (pair). Spot and flood in one beam. Harness and HB3/H4 piggyback adaptors in the box, and a 5-year warranty behind it.
Proof
Proven out there
- Born and tested in Far North-West Queensland
- On working rigs across the north-west: trucks, station and fleet vehicles
- 5-year warranty, 30-day money-back guarantee, flat $10 shipping, free for logged-in VIP members
The light
What you get
- 1 lux at 1,820 m (pair), 35,640 effective lumens (pair), spot and flood in the one beam
- 50,000+ hours of life
- Wiring harness plus HB3/H4 piggyback adaptors in the box

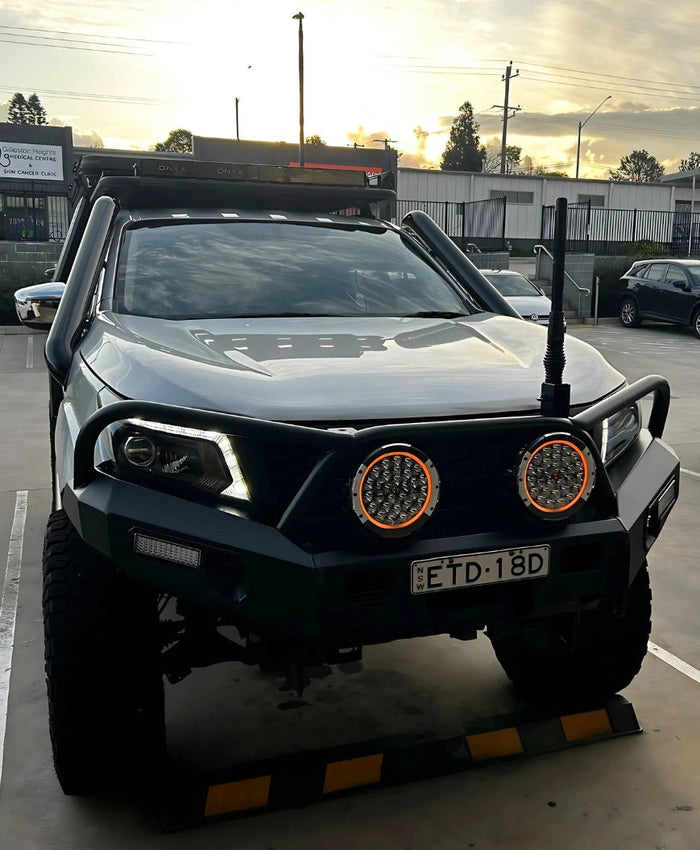

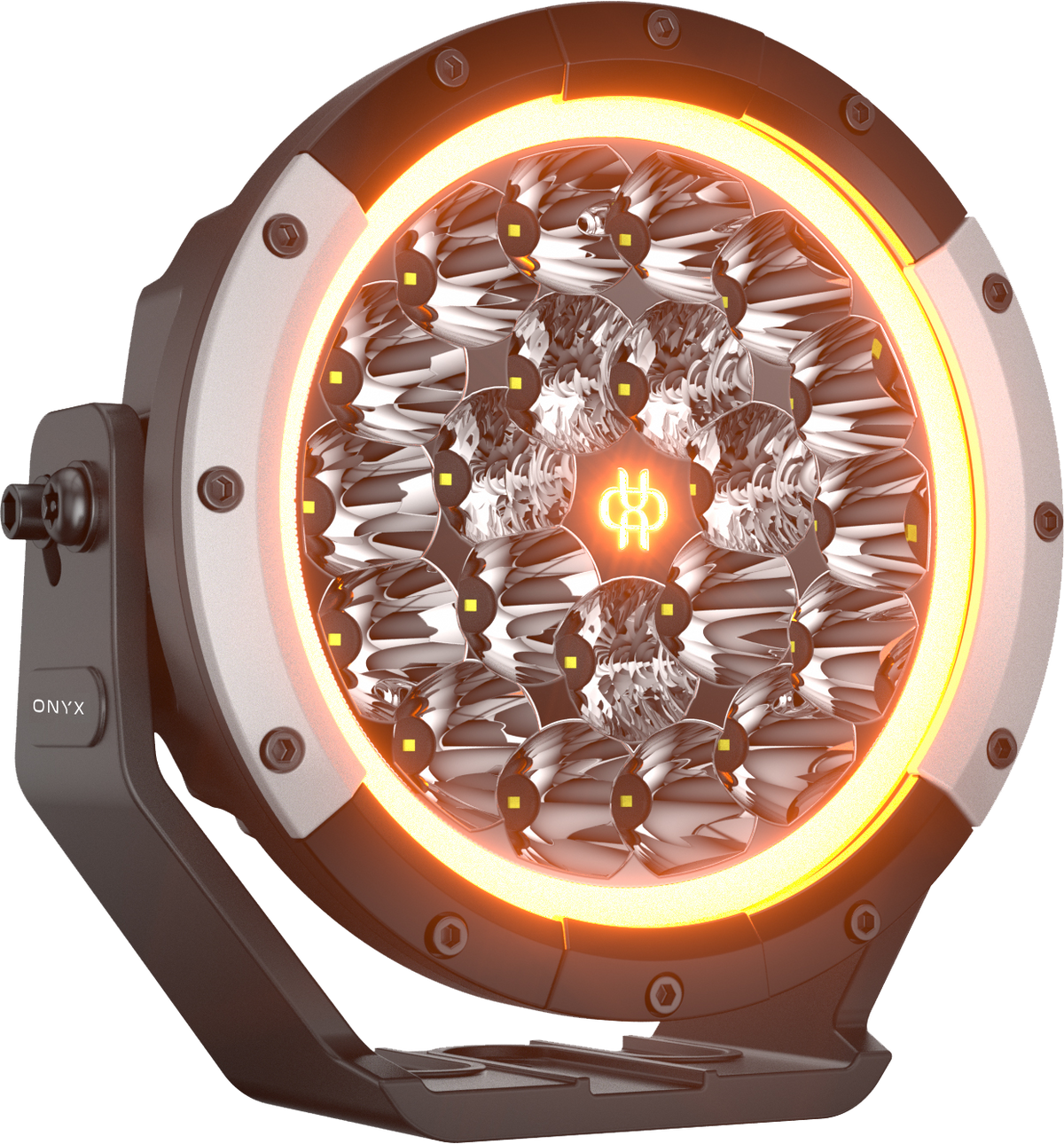

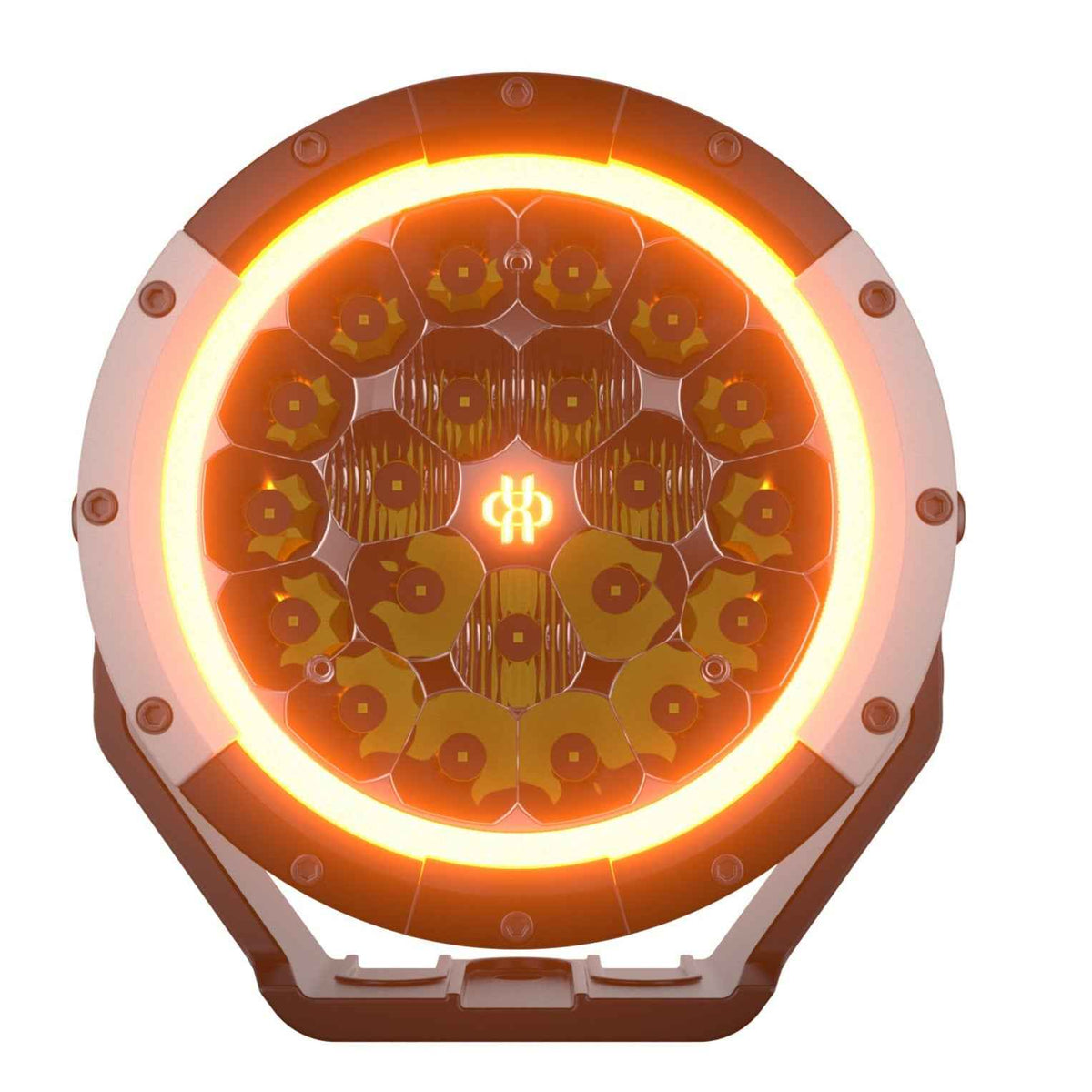

- Clear and amber DRLs for daytime presence and night visibility
- A startup sequence that runs every time you switch on

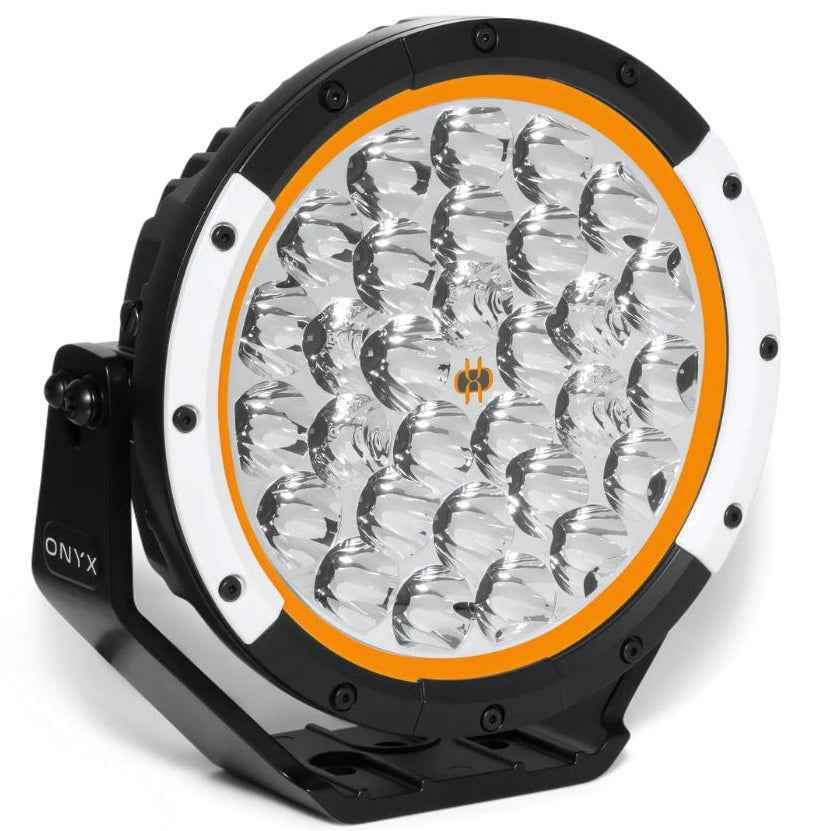

- Seven Onyx Swap insert colours to match your rig, changed in minutes with one Allen key. Nothing rewired.
Australian owned and operated, with 40+ stockists nationwide.
Key features
TB-9 at a glance
- 1 lux at 1,820 m (pair). Light a long way down the road, with spot and flood in the one beam for the table drains.
- 35,640 effective lumens (pair).
- Clear and amber DRLs. A startup sequence runs every time you switch on.
- Onyx Swap inserts. Seven colours to match your rig. One Allen key, nothing rewired.
- Harness and HB3/H4 piggyback adaptors in the box.
- 50,000+ hours. 5-year warranty.
Not cheap. Not fancy. Every dollar goes into the light.
Questions
Before you buy
What's in the box?
See "What's included" below.
Will it fit my rig?
The TB-9 fits any vehicle. It comes down to the measurements of your bullbar.
Is this all I need?
Usually, yes. The wiring harness and HB3/H4 piggyback adaptors are in the box. Need an adaptor or switch to suit your rig? Shop by vehicle, or ask us before you order.
Got a question?
Use the chat box during business hours, or email info@onyxlights.com.au.
Returns and warranty?
30-day money-back guarantee, and a 5-year warranty on the lights.
“Easy install, strong bracket, loving the start up feature of the light, good distance.”
In the box
What's included

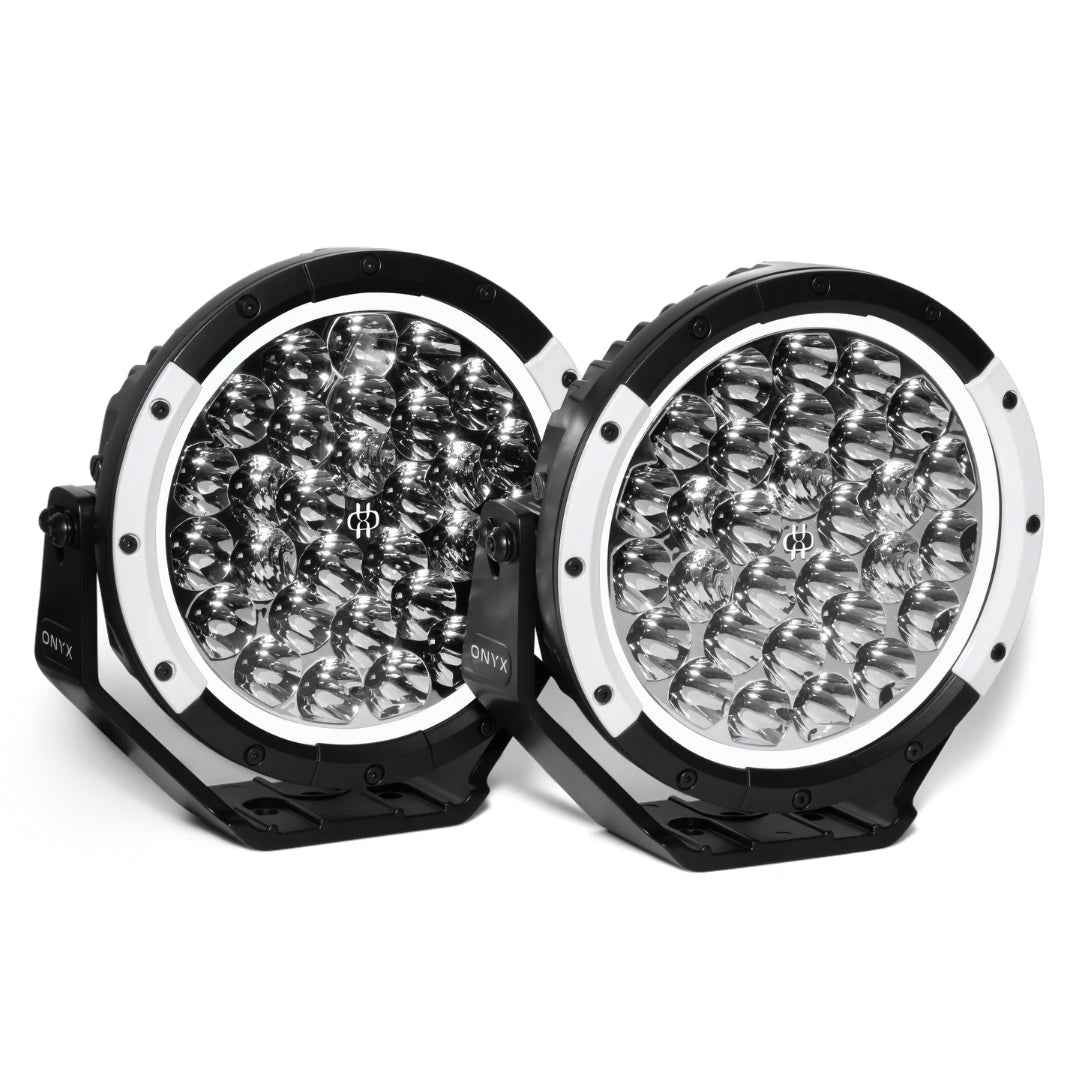

- 2×ONYX Lights TB-9 Driving Lights
- 2×Clear ONYX Lights Covers
- 4×White 9" Light Inserts
- 1×Plug and Play Wiring Harness
- HB3/H4 Piggyback Adaptors
- 3 Series Stainless Steel Nuts and Bolts
TB-9
Specifications
- Product code
- TB-9
- Description
- 9" LED DRIVING LIGHT WITH DUAL COLOUR (CLEAR/AMBER) DRL
- LEDs
- Osram LEDs
- Effective lumens
- 35,640LM (pair)
- 1 lux at
- 1,820M (pair)
- Beam pattern
- SPOT AND FLOOD IN ONE BEAM
- Colour temperature
- 6,500K
- Daytime running lights
- YES
- Voltage
- 9-36V
- Lens
- GE LEXAN LENS
- Housing
- ALUMINIUM
- Mounting
- 7.5MM MOUNTING BRACKETS
- Wiring
- WIRING HARNESS INCLUDED
- Connections
- HB3 AND H4 PIGGYBACK ADAPTORS INCLUDED
- Life
- 50,000 + HOURS
- Warranty
- 5 YEARS
TB-9

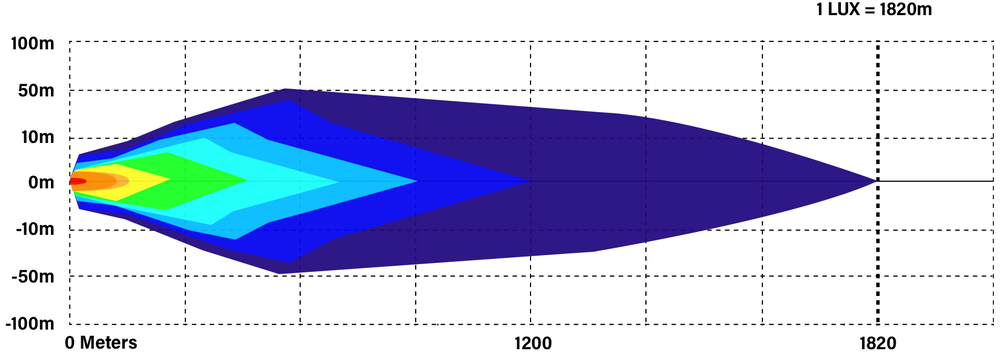

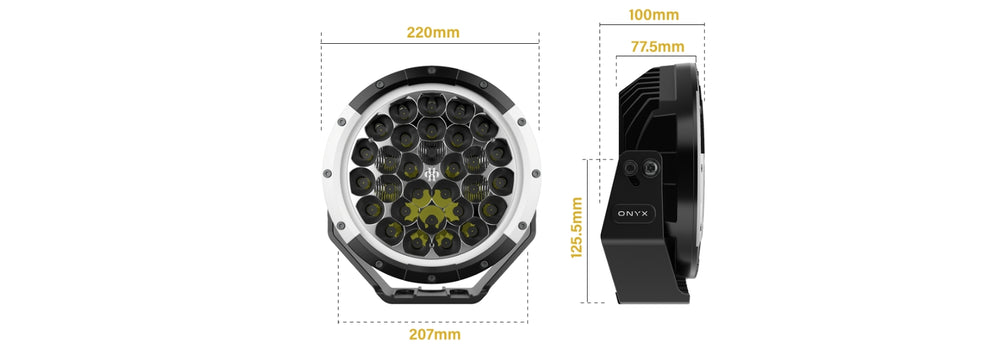

Size and beam
#onyxlights

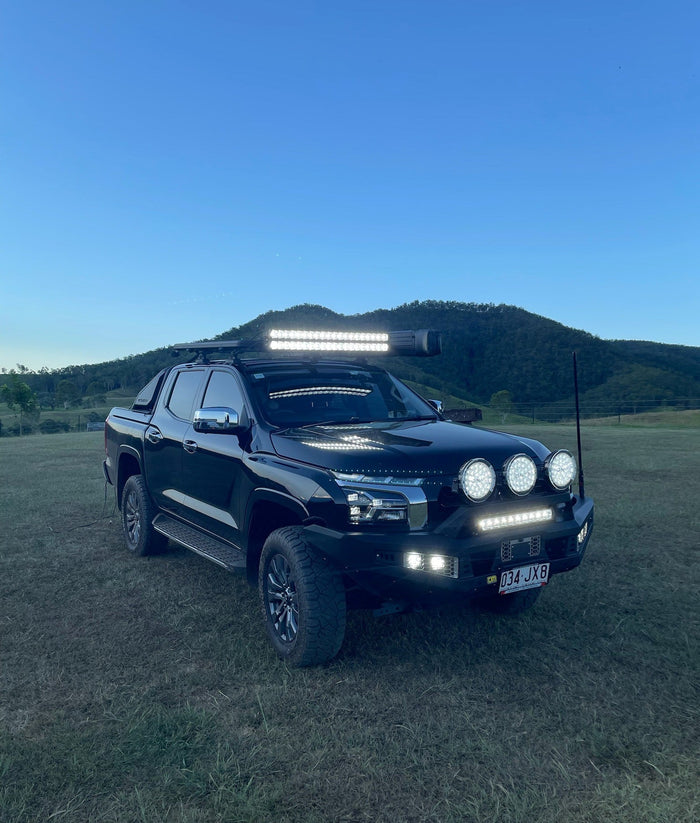

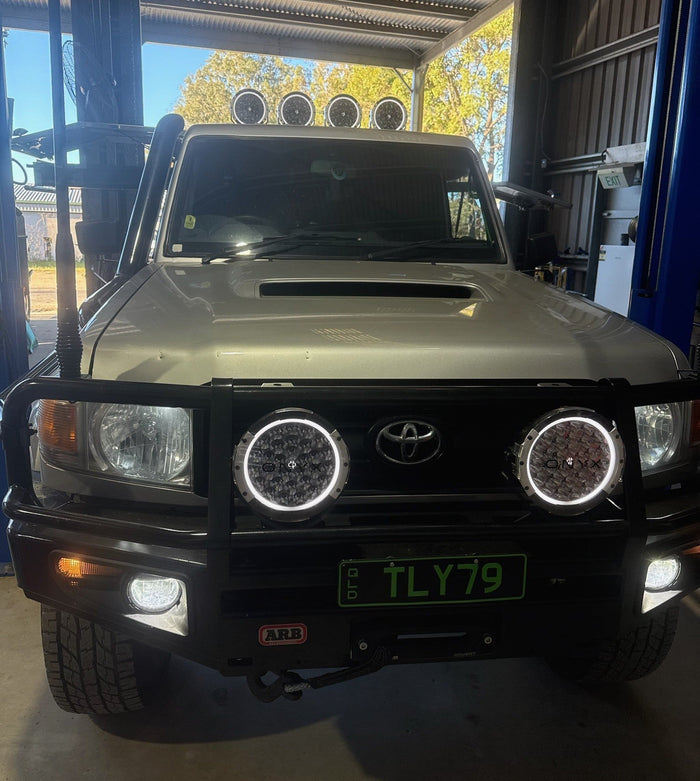

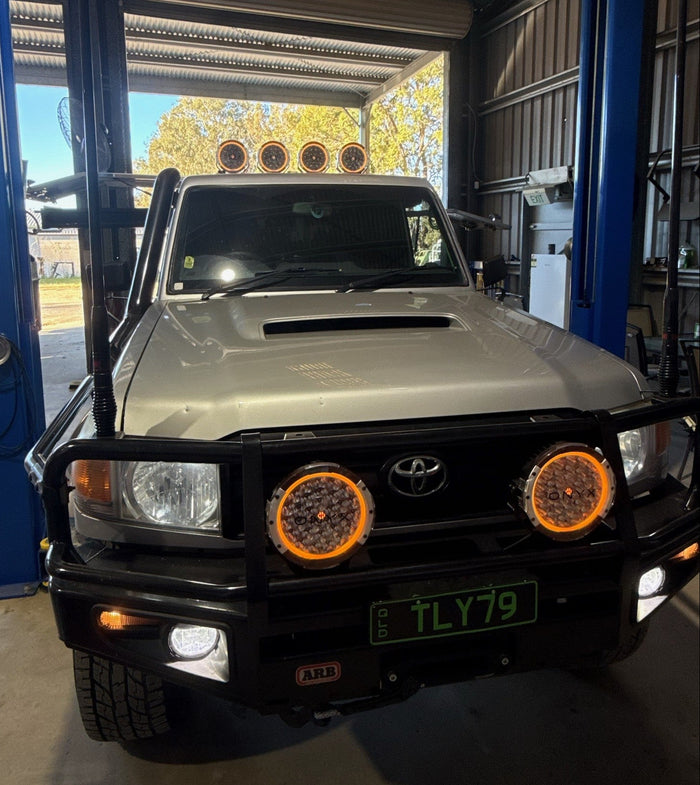

Photos from the community
